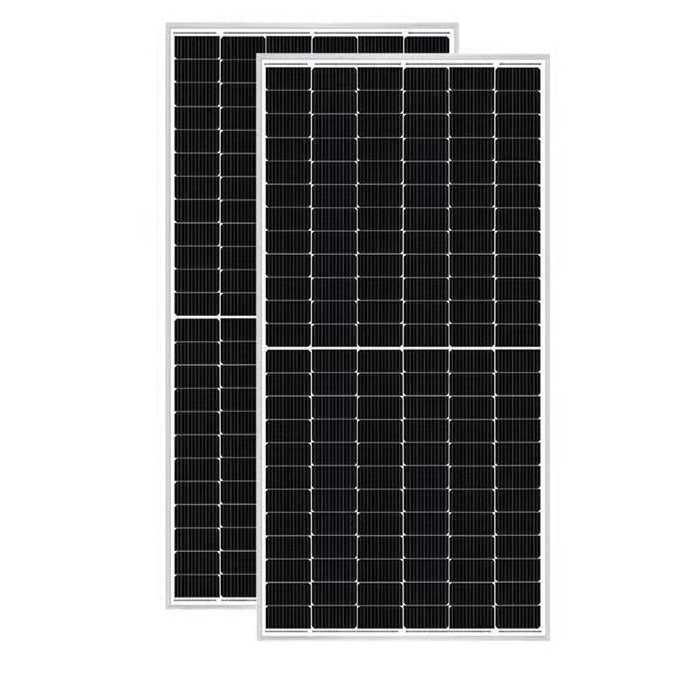

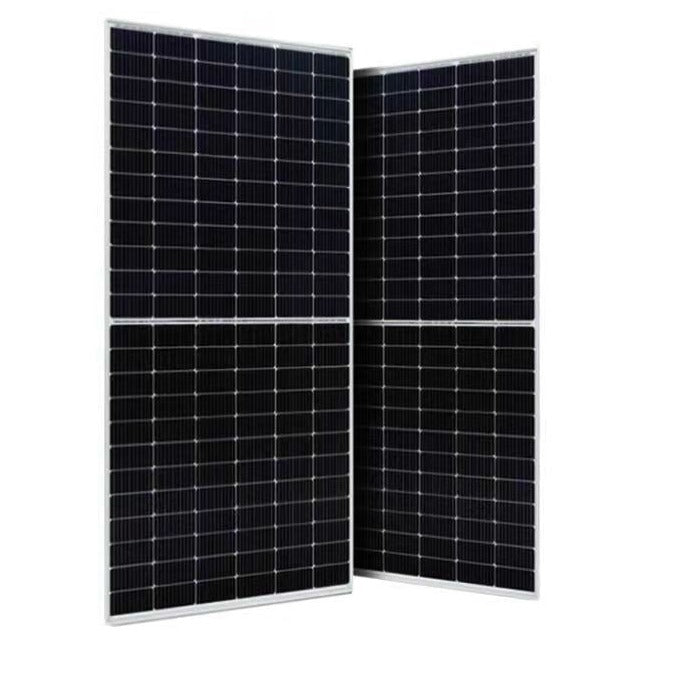

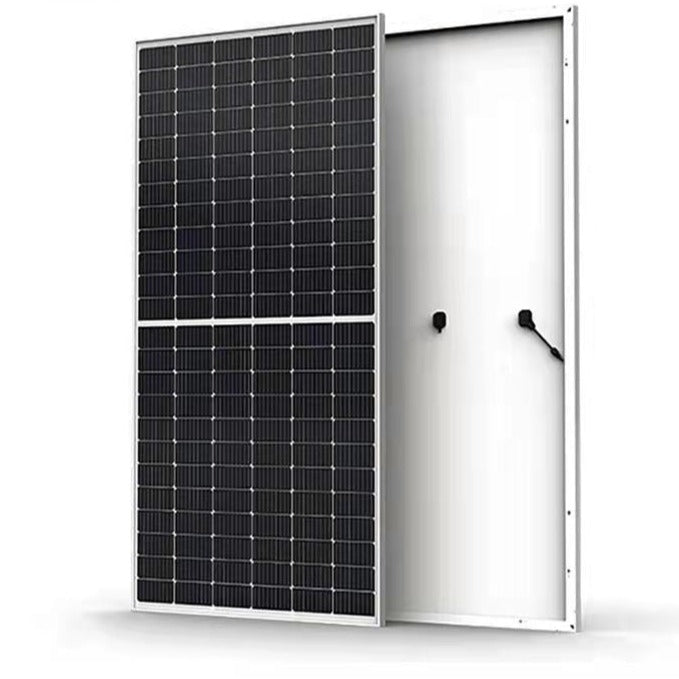

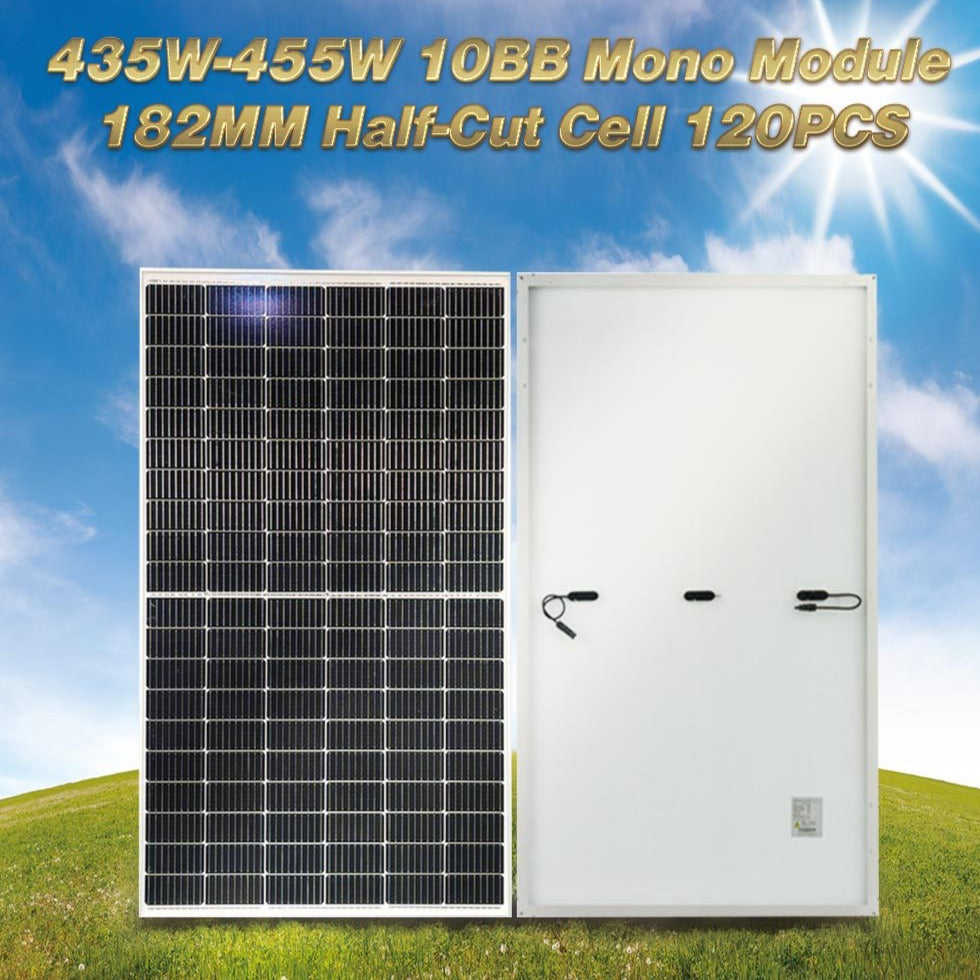

455W JINKO Half-Cell Monocrystalline Solar Panels

JINKO 455W HALF-CELL MBB MONO PERC

• Adopt most advanced PERC cells technology
• high conversion rate, the conversion efficiency is up to 22%.
• More than 25 years lifespan
• 12 years quality guarantee 25 years power output warranty.
• Anti-Crack - Excellent anti-microcracking performance with more balanced interior stress;
• Excellent power generation performance under Low-Light condition due to multi busbar; better shading response benefit from half cell module;
• Strength and Durability Certified for 5400Pa snow and 2400Pa Wind loads test;

Product parameters

Maximum Power Pmax(W) 455

Open Circuit Voltage (Voc/V)：50.2

Short Cuit Current (Isc/A)：11.48

Maximum Power Voltage (VmP/V)：41.5

Maximum Power Current(ImP/A)：10.97

CELLS (mm)：9BB-166*83 Mono perc cells

CELLS QTY：144(6×24）

Max System Voltage (V)：DC1500

Operate Temp Scope(°C)：-40 to 85

Module Size：2094×1038×35

Weight : 24.5kg
