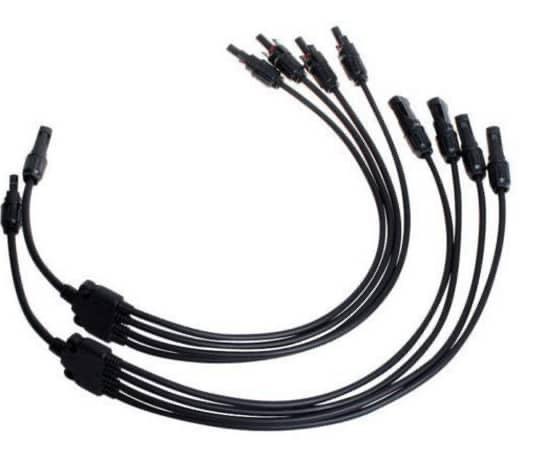

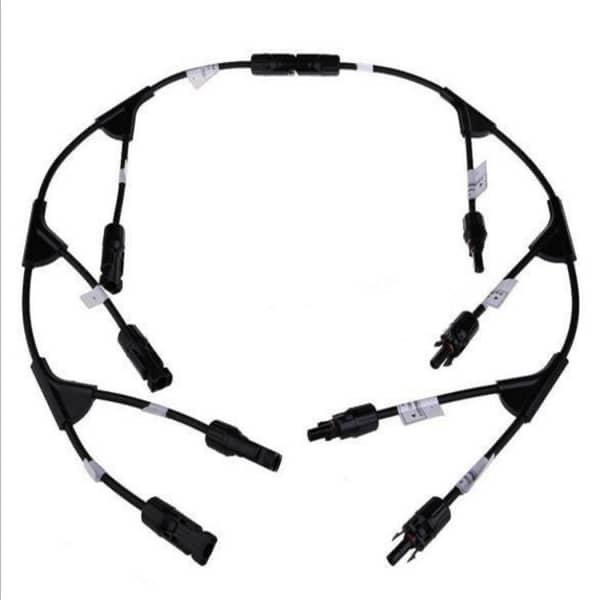

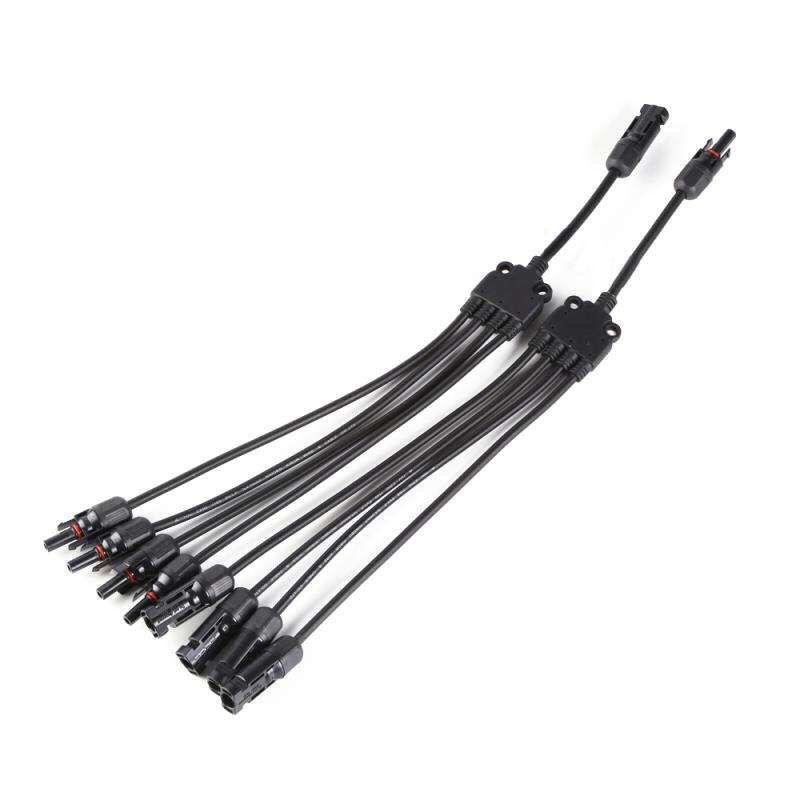

4:1 MC4 Y-Branch Cable Connector Splitter-Solar Panel

Description

Size: 31.5cm long

Withstand voltage: DC1000V

Contact resistance: less than 2m ohm

Insulation resistance: greater than 500M ohms

Use single-core cable section: 2.5mm2/4mm2/6mm2

Cable outer diameter range: diameter 5-7mm

Ambient temperature: minus 40-105 degrees

Protection class: IP67

Terminal connection method: crimp

Colour: Black

Material: copper tin plating + injection moulding

Features:

1. This Y-type two-way branch with cable is compatible with MC4 connectors and is a special branch for parallel connection of solar photovoltaic modules.
2. It is a good choice for distributed systems, with the characteristics of fast and reliable, waterproof and dustproof, fast and convenient to use, etc.
3. The shell has strong anti-aging and UV resistance capabilities. The connection of cables is connected by crimping and clamping, and the male and female connectors are fixed with a stable automatic locking mechanism, which can be opened and closed freely.

Package: 1*2/4pcs connector
